Schematic diagrams for Laptop Lenovo ThinkPad X1 Yoga 3rd Gen Project: Wistron ' LRV-3 '
- Manufacturer: Wistron
- CPU: Intel Kaby Lake
- VGA: UMA
- RAM: LPDDR3
- SKU: 12433
- Unit: pcs
- Size: 1.44Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptop Lenovo ThinkPad X1 Yoga 3rd Gen
Project: Wistron ' LRV-3 '

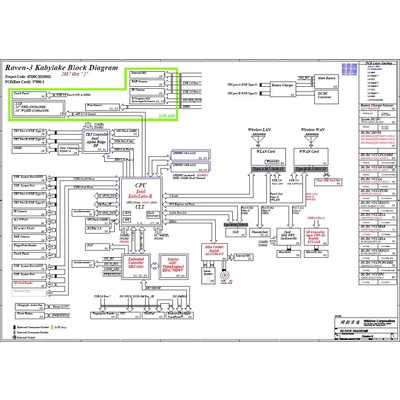

Schematic diagrams for motherboard marked LRV3 MB 17800-1
Format: PDF
Total pages: 89

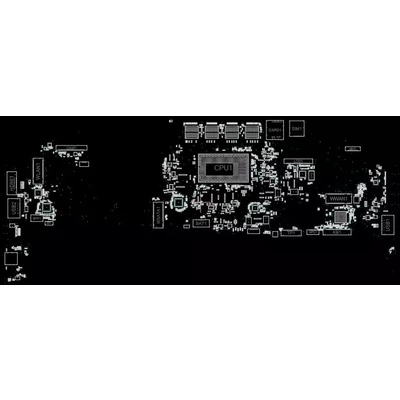

+ BoardView Rev: 1
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
