Schematic diagrams for Laptops ASUS Chromebook C223NA, C423NA, C523NA
- Manufacturer: ASUS
- CPU: Intel Apollo Lake
- GPU: UMA
- RAM: LPDDR4
- SKU: 03521
- Unit: pcs
- Size: 1.17Mb
- Availability: In stock
- Tags:
5.25eur
4.25eur

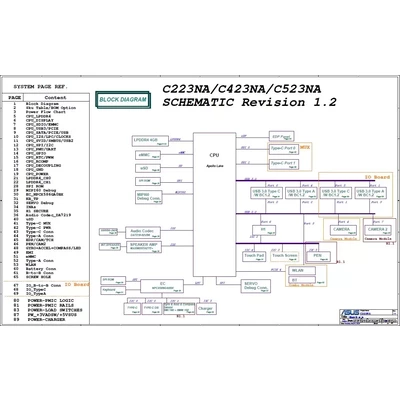

Schematic diagrams for Laptops ASUS Chromebook C223NA / ASUS Chromebook C423NA / ASUS Chromebook C523NA
Project: C223NA
Schematic diagrams for motherboard marked C223NA MAIN BOARD
Format: PDF
Total pages: 71

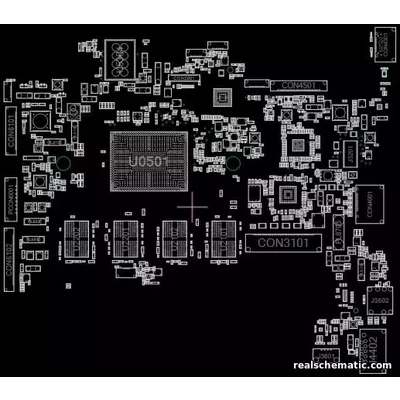

+ BoardView Rev: 2.2
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
