Schematic diagrams for Laptops Acer Aspire 3 A315-54K / Acer Extensa EX215-51K Project: LA-H782P
- Manufacturer: Compal
- CPU: Intel Skylake / Kaby Lake
- GPU: UMA
- RAM: DDR4
- SKU: 00574
- Unit: pcs
- Size: 1.40Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Acer Aspire 3 A315-54K / Acer Extensa EX215-51K
Project: Compal LA-H782P Rev: 1A
Schematic diagrams for motherboard marked EH7L1 LA-H782P Rev:1A
Format: PDF
Total pages: 43

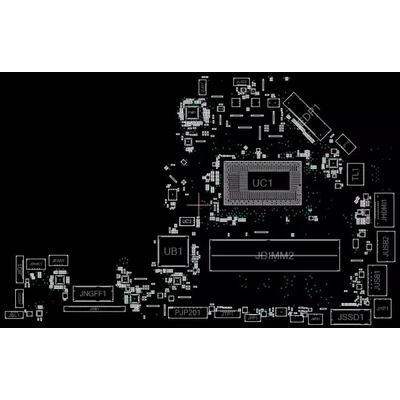

+ BoardView Rev: 1A
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
