ASUS ZenBook 14 UX433FA UX433FN
SKU: 03527
Schematic diagrams for Laptops ASUS ZenBook 14 UX433FA / UX433FN Project: UX433FN
- Manufacturer: ASUS
- CPU: Intel Whiskey Lake
- GPU: Nvidia N17S / UMA
- RAM: LPDDR3
- SKU: 03527
- Unit: pcs
- Size: 2.67Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur
Schematic diagrams for Laptops ASUS ZenBook 14 UX433FA / ASUS ZenBook 14 UX433FN
Project: ASUS UX433FN

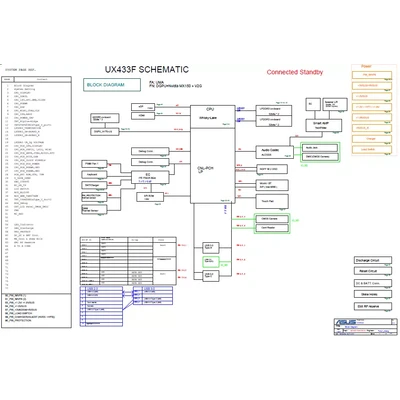

Schematic diagrams for motherboard marked UX433FN MAIN BOARD REV. 2.0
Format: PDF
Total pages: 66

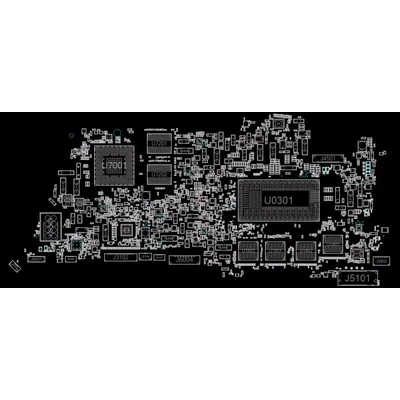

+ BoardView Rev: 2.0
Format: FZ ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
