Lenovo IdeaPad S145-14IGM, IdeaPad S145-15IGM

Name: Lenovo IdeaPad S145-14IGM, IdeaPad S145-15IGM
Brand: Lenovo
SKU: 12441
Price: 4.50 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Rating: 5.0/1

4.50eur

Manufacturer: Lenovo
SKU: 12441
Unit: pcs
Size: 3.12Mb
Availability: In Stock

pdf, IdeaPad, Lenovo, boardview, S145-15IGM, NM-C111, S145-14IGM

Description
Images

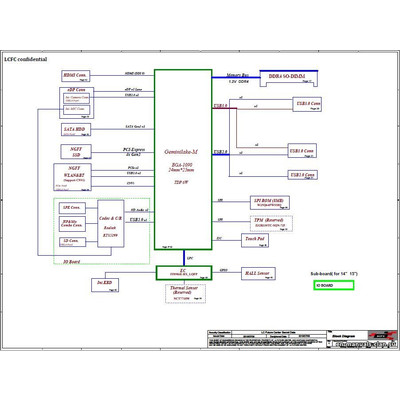

Schematic diagrams for Laptops Lenovo IdeaPad S145-14IGM / Lenovo IdeaPad S145-15IGM

Project: NM-C111

Schematic diagrams for PCB marked FS440FS541 NM-C111

Format: PDF

Total pages: 60

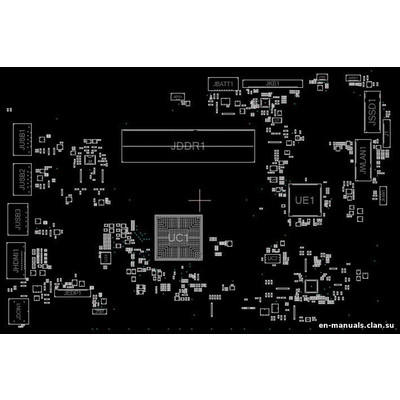

+ BoardView Rev: 1.0

The program for viewing is attached.

Added by: Dr-laptop, Friday, 30.07.2021
