Acer Aspire A317-51KG Extensa EX215-51KG

Name: Acer Aspire A317-51KG Extensa EX215-51KG
Brand: Compal
SKU: 00582
Price: 4.50 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Rating: 5.0/1

4.50eur

Manufacturer: Compal
CPU: Intel Kaby Lake
VGA: Nvidia N16S, N17S
RAM: DDR4
SKU: 00582
Unit: pcs
Size: 3.36Mb
Availability: In Stock

EX215-51KG, A317-51KG, Acer, compal, Extensa, aspire

Description
Images

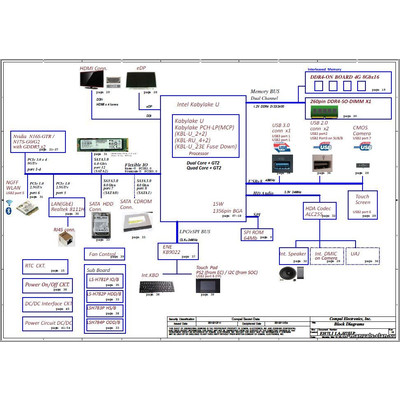

Schematic diagrams for Laptops Acer Aspire 3 A317-51KG / Acer Extensa EX215-51KG

Project: Compal LA-H781P Rev: 1B

Schematic diagrams for PCB marked EH7L1 LA-H781P

Format: PDF

Total pages: 54

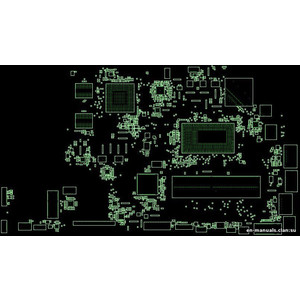

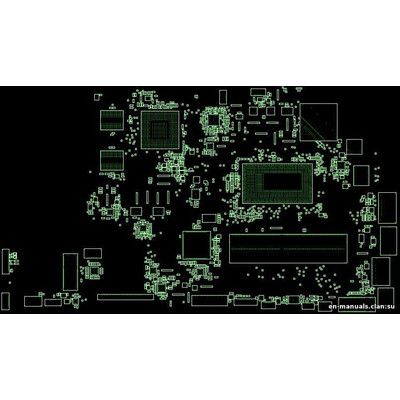

+ BoardView Rev: 1B

The program for viewing is attached.

Added by: Dr-laptop, Saturday, 28.08.2021
