Schematic diagrams for Laptops Lenovo IdeaPad L3 15IML05 / L3-15IML05 Project: NM-C951
- Manufacturer: Lenovo
- CPU: Intel Comet Lake
- VGA: UMA
- RAM: DDR4
- SKU: 12452
- Unit: pcs
- Size: 2.31Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops Lenovo IdeaPad L3 15IML05 / L3-15IML05
Project: NM-C951

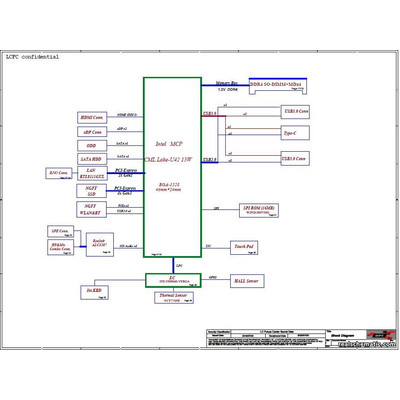

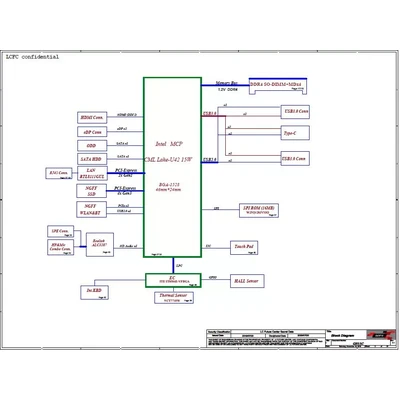

Schematic diagrams for motherboard marked GS55C NM-C951
Format: PDF
Total pages: 61

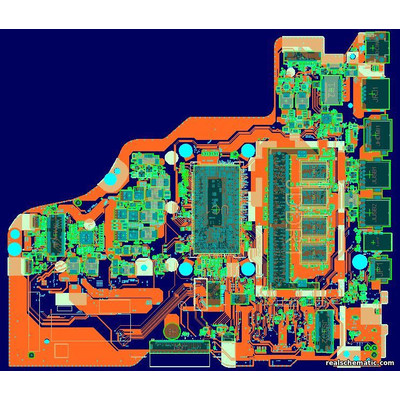

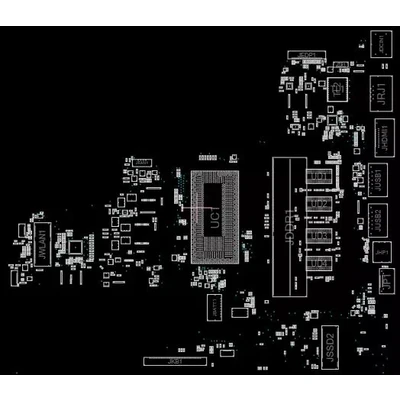

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
