Dell Latitude 3301, Vostro 5390, Inspiron 5391

Name: Dell Latitude 3301, Vostro 5390, Inspiron 5391
Brand: Wistron
SKU: 05403
Price: 4.50 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Rating: 5.0/1

4.50eur

Manufacturer: Wistron
SKU: 05403
Unit: pcs
Size: 3.70Mb
Availability: In Stock

Inspiron, Dell, vostro, wistron, 3301, 5391, latitude, WASP, 5390

Description
Images

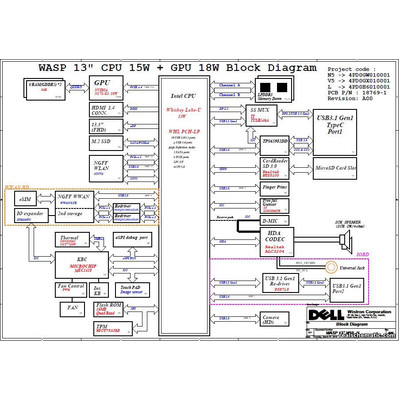

Schematic diagrams for Laptops Dell Latitude 3301 / Dell Vostro 5390 / Dell Inspiron 5391

Project: Wistron ' WASP 13 WHL-U ' Rev: A00

Schematic diagrams for PCB marked WASP13-MB 18769-1

Format: PDF

Total pages: 106

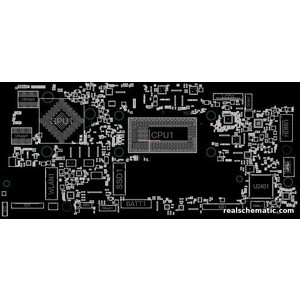

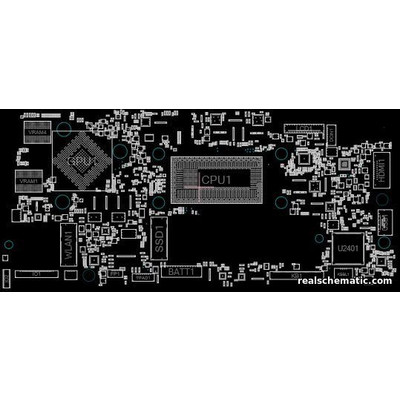

+ BoardView Rev: -1

The program for viewing is attached.

Added by: Dr-laptop, Thursday, 02.12.2021
