Apple iMac 27'' A1419 Late 2015 PCB: 820-00291
SKU: 17165
Schematic diagrams for All-in-One PC Apple iMac 27'' A1419 Project: J95 MLB_SKL_EM
- Manufacturer: Apple
- CPU: Intel Skylake
- GPU: AMD Radeon R9 M380 / M390
- RAM: DDR3
- SKU: 17165
- Unit: pcs
- Size: 2.05Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for All-in-One PC Apple iMac 27'' A1419 Late 2015
Project: J95 MLB_SKL_EM

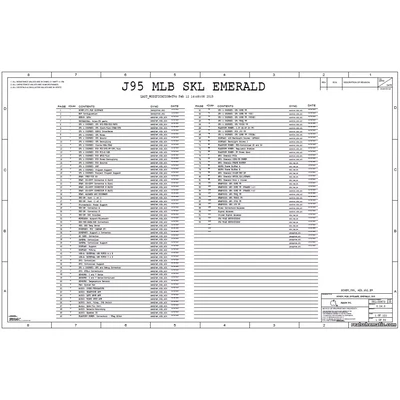

Schematic diagrams for motherboard marked 820-00291-A
Format: PDF
Total pages: 93

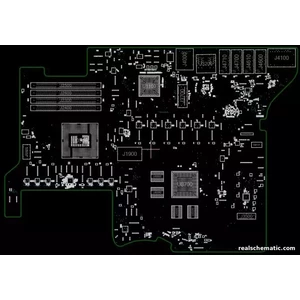

+ BoardView
Format: BRD
The program for viewing is attached.

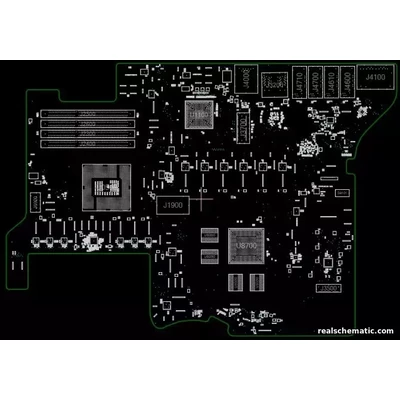

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
