Lenovo IdeaPad Gaming 3 15IMH05 Creator 5 15IMH05
SKU: 12465
Schematic diagrams for Laptops Lenovo IdeaPad 3 15IMH05 / Creator 5 15IMH05 Project: NM-C871
- Manufacturer: Lenovo
- CPU: Intel Comet Lake H
- GPU: Nvidia N18P
- RAM: DDR4
- SKU: 12465
- Unit: pcs
- Size: 6.67Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

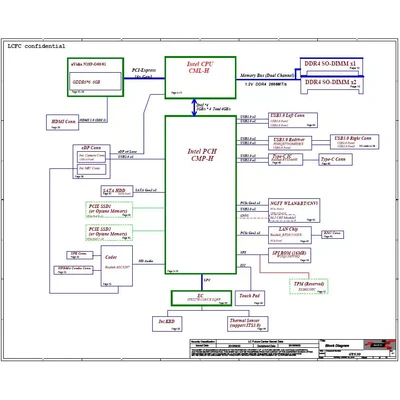

Schematic diagrams for Laptops Lenovo IdeaPad Gaming 3 15IMH05 / Lenovo IdeaPad Creator 5 15IMH05
Project: NM-C871
Schematic diagrams for motherboard marked GY530\GY531\GY532 NM-C871
Format: PDF
+ NS-C871 Sub-board schematic diagrams
Total pages: 76

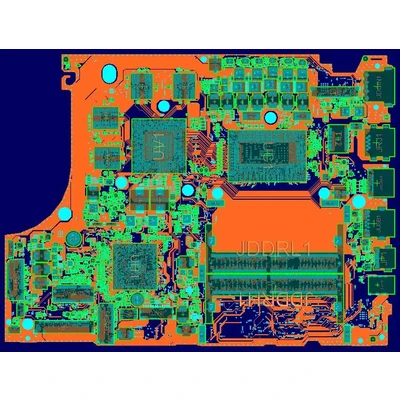

+ BoardView Rev: 2.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
