Schematic diagrams for Laptops Lenovo IdeaPad S145-14API, S145-15API Project: NM-C511
- Manufacturer: Lenovo
- CPU: AMD Picasso
- VGA: UMA
- RAM: DDR4
- SKU: 12472
- Unit: pcs
- Size: 7.38Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops Lenovo IdeaPad S145-14API / Lenovo IdeaPad S145-15API
Project: NM-C511 Rev: 1.0

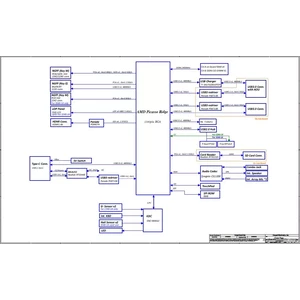

Schematic diagrams for motherboard marked GS440&GS540 NMC511
Format: PDF
Total pages: 44

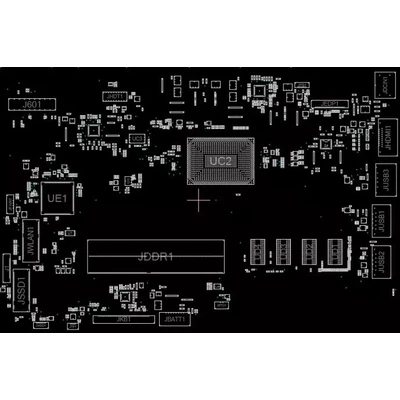

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
