Schematic diagrams for Laptops Lenovo ThinkPad E14, ThinkPad E15 Project: NM-C421
- Manufacturer: Lenovo
- CPU: Intel Comet Lake
- VGA: AMD Polaris 23 (RX640M)
- RAM: DDR4
- SKU: 12481
- Unit: pcs
- Size: 3.43Mb
- Availability: In stock
- Tags:
5.25eur

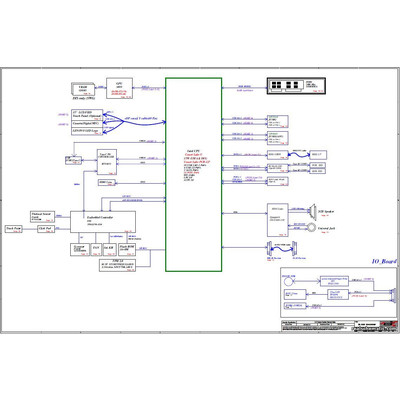

Schematic diagrams for Laptops Lenovo ThinkPad E14 / Lenovo ThinkPad E15
Project: NM-C421 Rev: 1.0
Schematic diagrams for motherboard marked FE4A0/FE5A0 NM-C421
Format: PDF
Total pages: 128

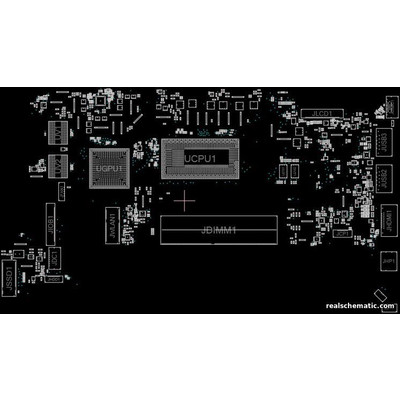

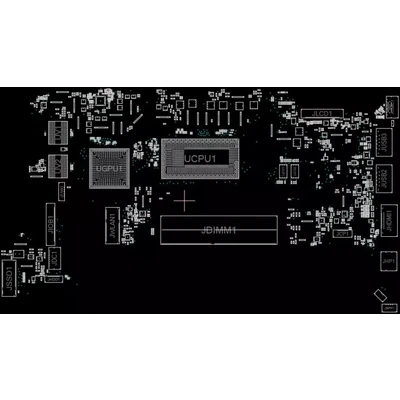

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
