Schematic diagrams for Laptops Acer Aspire A514-53, Aspire A514-53G Project: NB2593
- Manufacturer: Huaqin
- CPU: Intel Ice Lake
- GPU: Nvidia N17S / UMA
- RAM: DDR4
- SKU: 00613
- Unit: pcs
- Size: 3.09Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Acer Aspire 5 A514-53 / Acer Aspire 5 A514-53G
Project: Huaqin NB2593

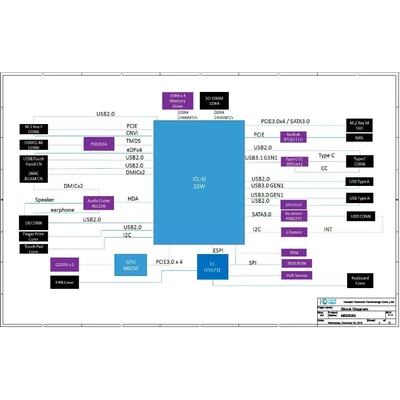

Schematic diagrams for motherboard marked NB2593_MB_V1
Format: PDF
Total pages: 72

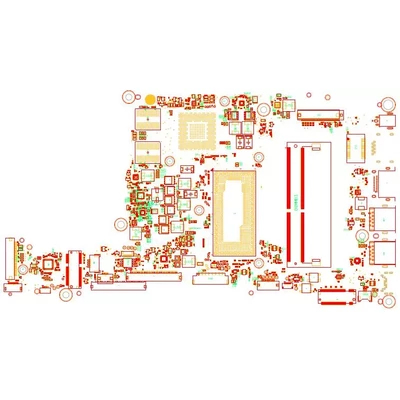

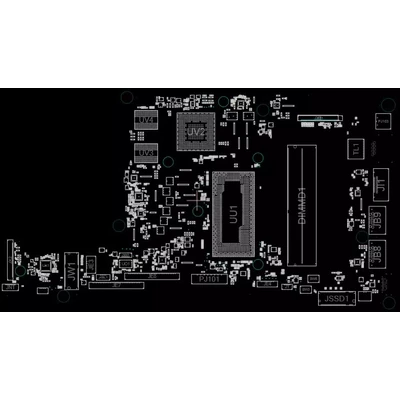

+ BoardView Rev: 1.0 ( two formats )
Format: CAD + PDF
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
