Schematic diagrams for Laptops Dell Latitude 7290, Latitude 7390 Project: LA-F312P
- Manufacturer: Compal
- CPU: Intel Kaby Lake R
- VGA: UMA
- RAM: DDR4
- SKU: 05421
- Unit: pcs
- Size: 1.97Mb
- Availability: In stock
- Tags:
4.50eur

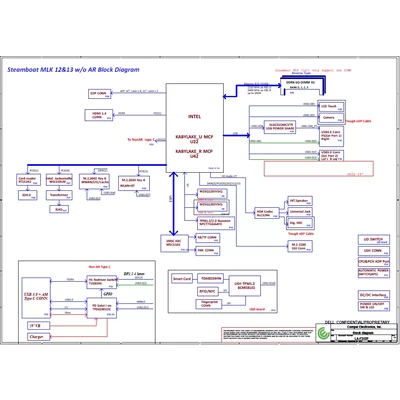

Schematic diagrams for Laptops Dell Latitude 7290 / Dell Latitude 7390
Project: Compal LA-F312P Rev: 2.0
Schematic diagrams for motherboard marked DAZ20 LA-F312P
Format: PDF
Total pages: 58

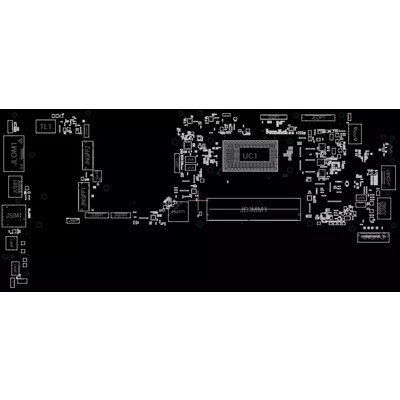

+ BoardView Rev: 2.0
Format: CAD
The program for viewing is attached.
Multilayer BoardView Rev: 2.0 in BRD format is available (not included in price, price on request)

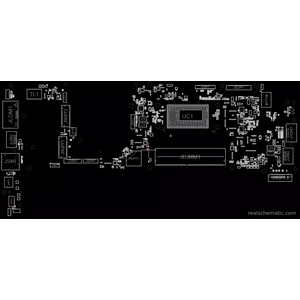

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
