MSI GF62 GF72 GV62 GV72 MS-179E

5.0/1
SKU: 02641
Schematic diagrams for Laptops MSI GF62, GF72, GV62, GV72, MS-179E Project: MS-16JE1
  • Manufacturer: MSI
  • CPU: Intel Coffee Lake H
  • VGA: Nvidia N17E
  • RAM: DDR4
  • SKU: 02641
  • Unit: pcs
  • Size: 3.58Mb
  • Availability: In stock
  • Tags: GF72, MS-179E, MS-16JE, MSI, GV62, GF62, GV72
5.25eur

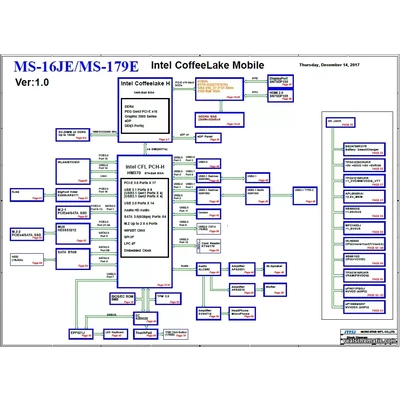

Schematic diagrams for Laptops MSI GF62 / MSI GF72 / MSI GV62 / MSI GV72 / MSI MS-179E

Project: MS-16JE1 / MS-179E   Rev: 1.0

Schematic diagrams for motherboard marked MS-16JE1 VER:1.0

Format: PDF

+ Sub-boards schematic diagrams

Total pages: 75

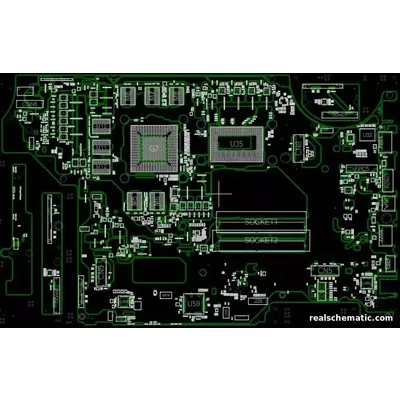

+ BoardView for Mainboard   Rev: 1.0   ( shows the values / labeling of the components )

+ BoardView for Sub-boards

Format: CAD

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
