Schematic diagrams for Laptops Acer Swift 5 SF514-53T / TravelMate X5 TMX514-51 Project: Carlsberg-WHL
- Manufacturer: Wistron
- SKU: 00627
- Unit: pcs
- Size: 4.57Mb
- Availability: In stock
- Tags:
4.50eur

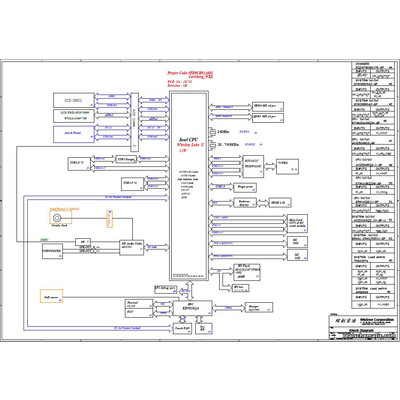

Schematic diagrams for Laptops Acer Swift 5 SF514-53T / Acer TravelMate X5 TMX514-51
Project: Wistron ' Carlsberg-WHL '
Schematic diagrams for motherboard marked 18751-1 CARLSBERG_WHL_MB
Format: PDF
Total pages: 106

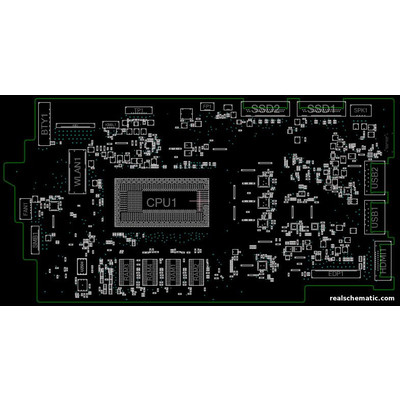

+ BoardView Rev: 1
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
