Dell Inspiron 15 7591, Inspiron 17 7791 2-in-1
SKU: 05440
Schematic diagrams for Laptops Dell Inspiron 15 7591 / Inspiron 17 7791 Project: Wistron ' Jedi 15/17 CML '
- Manufacturer: Wistron
- SKU: 05440
- Unit: pcs
- Size: 3.97Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

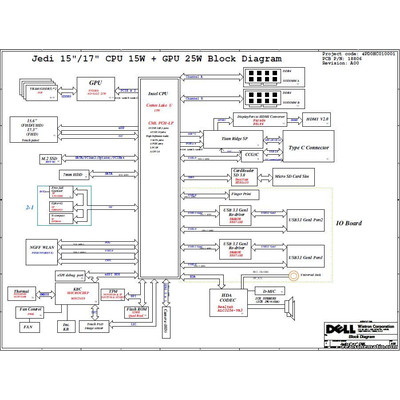

Schematic diagrams for Laptops Dell Inspiron 15 7591 2-in-1 / Dell Inspiron 17 7791 2-in-1
Project: Wistron ' Jedi 15/17 CML ' Rev: -1
Schematic diagrams for PCB marked Jedi15/17 CML MB 18806-1
Format: PDF
Total pages: 106

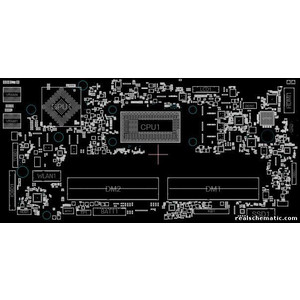

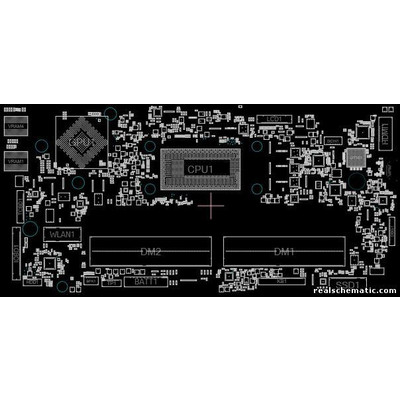

+ BoardView Rev: -1
The program for viewing is attached.
