Lenovo ThinkPad T490 T590 P43s P53s PCB: NM-B901
SKU: 12532

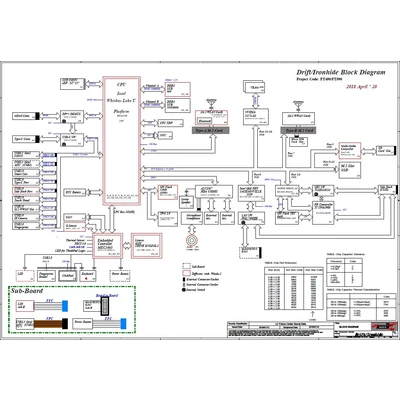

Schematic diagrams for Laptops Lenovo ThinkPad T490 / T590 / P43s / P53s Project: NM-B901
- Manufacturer: Lenovo
- CPU: Intel Whiskey Lake
- GPU: Nvidia N17S / UMA
- RAM: DDR4
- SKU: 12532
- Unit: pcs
- Size: 4.21Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Lenovo ThinkPad T490 / ThinkPad T590 / ThinkPad P43s / ThinkPad P53s
Project: NM-B901 Rev: 1.0
Schematic diagrams for motherboard marked FT490/FT492/FT590/FP531 NM-B901
Format: PDF
Total pages: 125

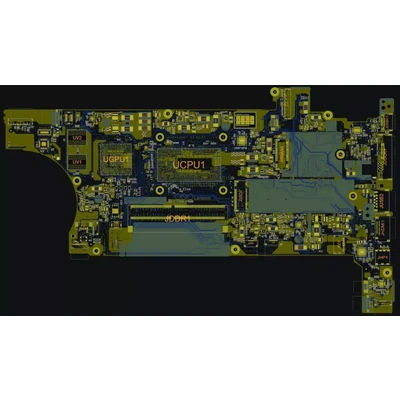

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
