Lenovo ThinkPad P53 PCB: NM-C262
SKU: 12552

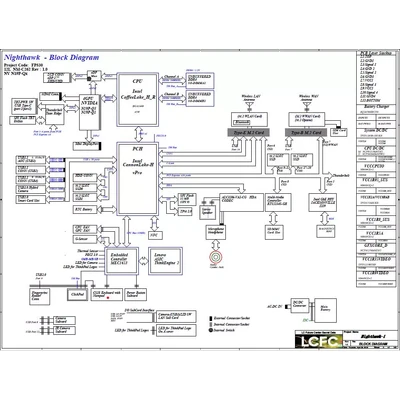

Schematic diagrams for Laptop Lenovo ThinkPad P53 Project: NM-C262
- Manufacturer: Lenovo
- CPU: Intel Coffee Lake HR
- GPU: Nvidia N19P
- RAM: DDR4
- SKU: 12552
- Unit: pcs
- Size: 3.37Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptop Lenovo ThinkPad P53
Project: NM-C262 Rev: 1.0
Schematic diagrams for motherboard marked FP530 NM-C262
Format: PDF
Total pages: 142

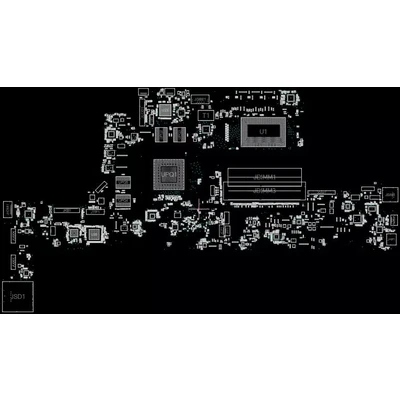

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
