ASUS VivoBook M3500Q M3500QA M3500QC M7600QC

Name: ASUS VivoBook M3500Q M3500QA M3500QC M7600QC
Brand: ASUS
SKU: 03624
Price: 4.50 EUR
Availability: InStock
Rating: 5.0 (4 reviews)

Rating: 5.0/4

4.50eur

Manufacturer: ASUS
SKU: 03624
Availability: In Stock
Unit: pcs
Size: 151.1Kb

VivoBook, M3500QA, ASUS, M3500QC, M3500Q, M7600QC

Description

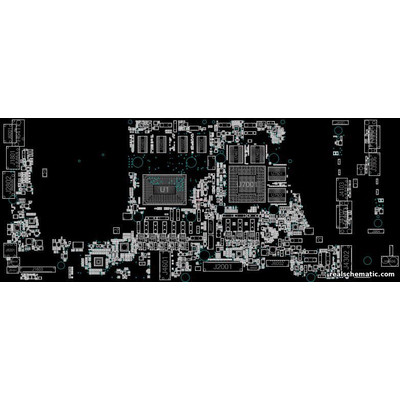

BoardView for Laptops ASUS VivoBook M3500Q / M3500QA / M3500QC / M7600QC

Project: ASUS M3500QA Rev: 2.1

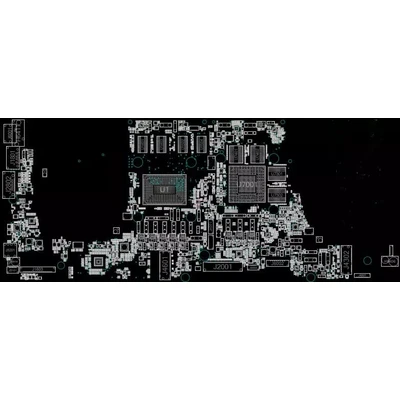

BoardView for PCB marked M3500QA MAIN BOARD

Two sides.

Format: FZ ( shows the values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.

Added by: Dr-laptop, Tuesday, 16.05.2023
