Dell Latitude 3300
SKU: 05478
Schematic diagrams for Laptop Dell Latitude 13 3300 Project: Wistron ' Pinehills '
- Manufacturer: Wistron
- CPU: Intel Kaby Lake R
- GPU: UMA
- RAM: DDR4
- SKU: 05478
- Unit: pcs
- Size: 3.03Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

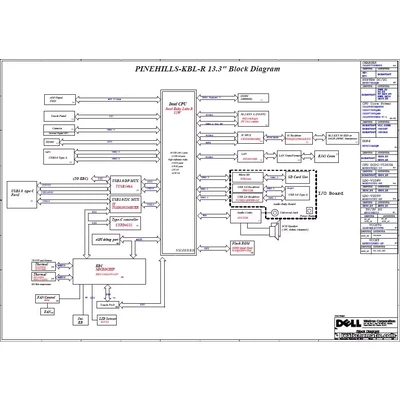

Schematic diagrams for Laptop Dell Latitude 13 3300
Project: Wistron ' Pinehills '
Schematic diagrams for PCB marked PINEHILLS-MAIN BOARD 6L 17910-1
Format: PDF
Total pages: 106

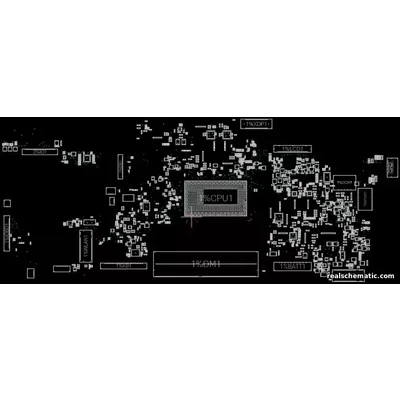

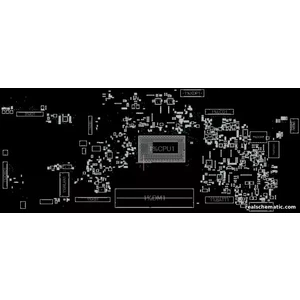

+ BoardView
The program for viewing is attached.
