ASRock AMD Radeon RX 6600 Challenger D 8GB

5.0/2
Compare
SKU: 17881
BoardView for Graphics Card ASRock AMD Radeon RX 6600 Challenger D 8GB
  • Manufacturer: ASRock
  • VGA: AMD Navi 23
  • RAM: GDDR6
  • SKU: 17881
  • Unit: pcs
  • Size: 73.9Kb
  • Availability: In stock
  • Tags: Radeon, ASRock, Challenger, 6600
5.25eur

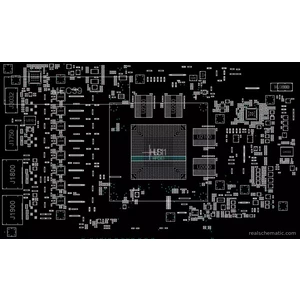

BoardView for Graphics Card ASRock AMD Radeon RX 6600 Challenger D 8GB

Project: ASRock 70-GA2R00-A01   Rev: 1.01

BoardView for cards marked on the backplate RX6600 CLD 8G

Two sides.

Shows the positional designation, values / labeling of the components, electrical circuits and other details.

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
