ASRock Radeon RX 6900 XT Phantom Gaming D 16GB OC

5.0/1
Compare
SKU: 17885
BoardView for Graphics Card ASRock Radeon RX 6900 XT Phantom Gaming D 16GB OC
  • Manufacturer: ASRock
  • VGA: AMD Navi 21
  • RAM: GDDR6
  • SKU: 17885
  • Unit: pcs
  • Size: 132.8Kb
  • Availability: In stock
  • Tags: ASRock, XT, 6900, Gaming, Phantom, Radeon
5.25eur

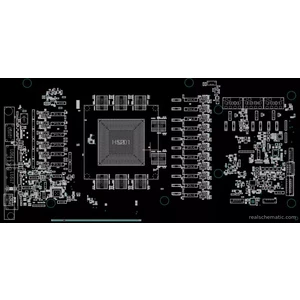

BoardView for Graphics Card ASRock Radeon RX 6900 XT Phantom Gaming D 16GB OC

Project: ASRock 70-GA2D00-A01   Rev: 1.01

BoardView for cards marked on the backplate RX6900XT PGD 16GO

Two sides.

Format: CAD full   ( shows the values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
