ASRock Radeon RX 7900 XT Phantom Gaming 20GB OC

5.0/1
Compare
SKU: 17901
BoardView for Graphics Card ASRock AMD Radeon RX 7900 XT Phantom Gaming 20GB OC
  • Manufacturer: ASRock
  • VGA: AMD Navi 31
  • RAM: GDDR6
  • SKU: 17901
  • Unit: pcs
  • Size: 152.2Kb
  • Availability: In stock
  • Tags: Phantom, Gaming, XT, ASRock, 7900, Radeon
7.00eur

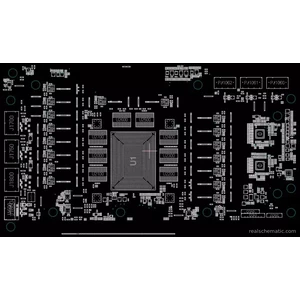

BoardView for Graphics Card ASRock AMD Radeon RX 7900 XT Phantom Gaming 20GB OC

Project: ASRock 70-GA3X00-A01   Rev: 1.01

BoardView for cards marked on the backplate RX7900XT PG 20GO

Two sides.

Shows the positional designation, values / labeling of the components, electrical circuits and other details.

Format: CAD full

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
