ASUS ROG G75VX

Rating: 5.0/1
 5.25eur
  • Manufacturer: ASUS
  • CPU: Intel Socket 989
  • VGA: MXM Module
  • RAM: DDR3
  • SKU: 03671
  • Unit: pcs
  • Size: 411.1Kb
  • Availability: In Stock
    • Tags: ASUS, ROG, G75VX
Compare

BoardView for Laptop ASUS ROG G75VX

Project: ASUS G75VX   Rev: 2.0

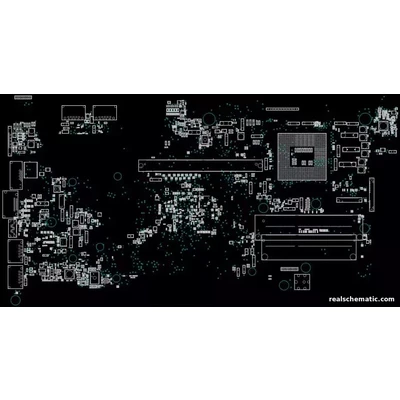

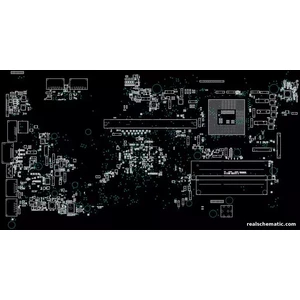

BoardView for PCB marked G75VX MAIN BOARD

Two sides. Two sub-revisions: 60-NLEMB1001-C03, 60-NLEMB1101-C04

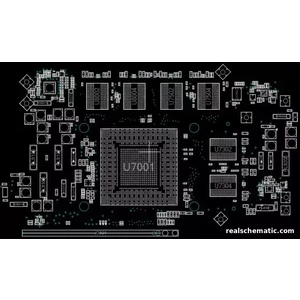

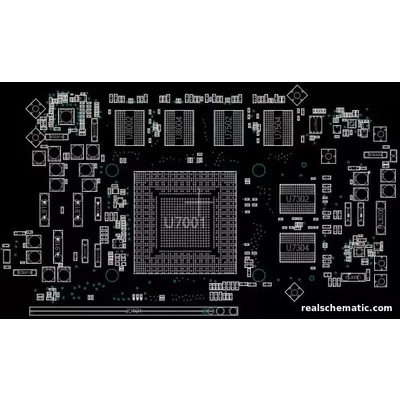

+ BoardView for MXM VGA Board G75VX MXM 192BIT    Rev: 2.0

Format: FZ   ( shows the values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.

Added by: Dr-laptop, Sunday, 24.03.2024
