ASUS K40C, K50C, X5DC, X8AC

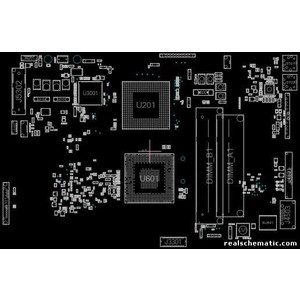

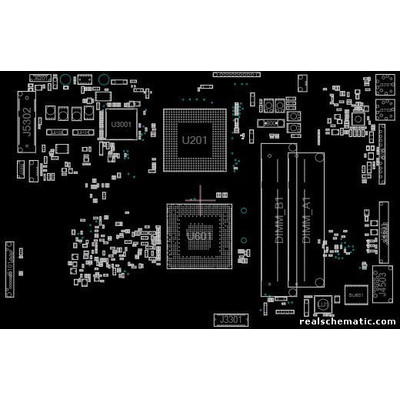

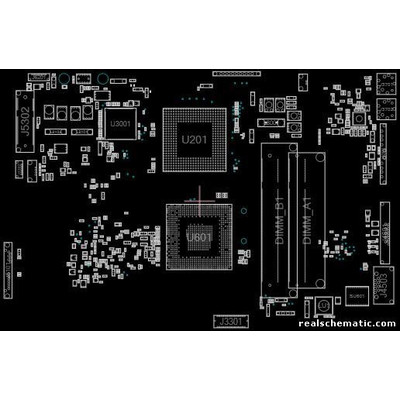

BoardView for Laptops ASUS K40C / K50C / X5DC / X8AC

Project: ASUS K40C   Rev: 2.0, 2.1

Two sides. Two revisions.

Format: FZ   ( with factory part numbers )

Shows the positional designation, labeling and other details.

The program for viewing is attached.
