Schematic diagrams for Laptop Dell XPS 13 9305 Project: FDP30 LA-K461P
- Manufacturer: Compal
- CPU: Intel Tiger Lake
- VGA: UMA
- RAM: LPDDR4X
- SKU: 05530
- Unit: pcs
- Size: 3.35Mb
- Availability: In stock
- Tags:
7.00eur

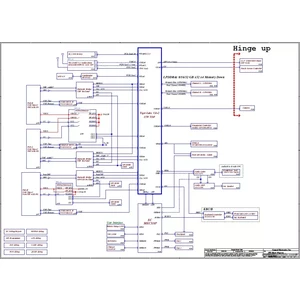

Schematic diagrams for Laptop Dell XPS 13 9305
Project: Compal LA-K461P Rev: 1.0
Schematic diagrams for motherboard marked FDP30 LA-K461P
Format: PDF
Total pages: 121
+ BoardView Rev: 1.0
Format: CAD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
