Schematic diagrams for Laptops Acer Predator 17X GX-791 series Project: Pegatron P7NCR
- Manufacturer: Pegatron
- CPU: Intel Skylake H
- VGA: Nvidia N16E
- RAM: DDR4
- SKU: 00684
- Unit: pcs
- Size: 12.35Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptops Acer Predator 17X GX-791 series
Project: Pegatron P7NCR

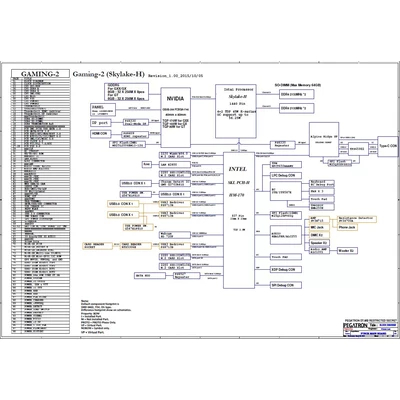

Schematic diagrams for motherboard marked P7NCR MAIN BOARD
Format: PDF
Total pages: 86

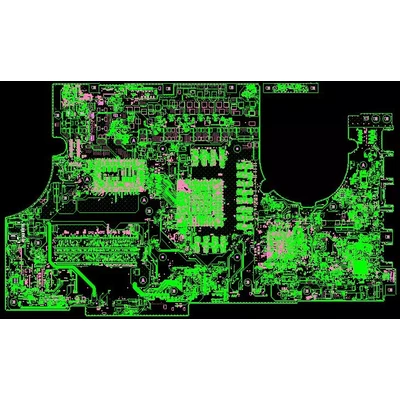

+ BoardView Rev: 2.0
Format: BRD, PDF
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
