Apple MacBook Pro 13 A2338 M2 2022 PCB: 820-02773

5.0/2
Compare
SKU: 17179
Schematic diagrams for Laptop Apple MacBook Pro 13 A2338 M2 Late 2022
  • Manufacturer: Apple
  • CPU: Apple M2
  • GPU: UMA
  • RAM: LPDDR5
  • SKU: 17179
  • Unit: pcs
  • Size: 1.98Mb
  • Availability: In stock
  • Tags: A2338, Apple, M2, macbook pro
5.25eur
4.50eur

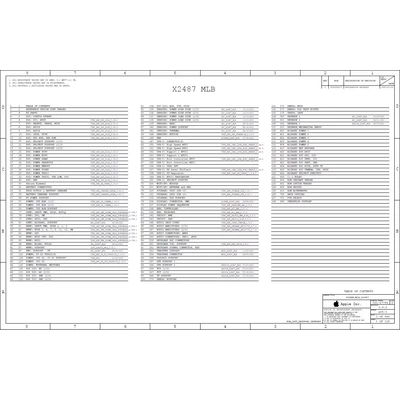

Schematic diagrams for Laptop Apple MacBook Pro 13 A2338 M2 Late 2022

Project: Apple X2487

Schematic diagrams for motherboards marked 820-02773-A, 820-02773-05 and similar

Format: PDF

Total pages: 128

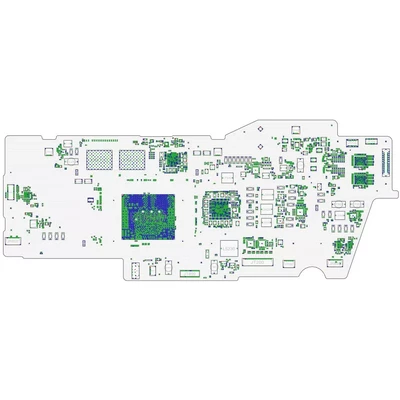

+ BoardView   Rev: 820-02773-05

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
