Lenovo Thinkpad X1 Fold Gen 1 PCB: NM-C501
SKU: 12660
Schematic diagrams for Laptop Lenovo Thinkpad X1 Fold Gen 1 Project: GX3A1 NM-C501
- Manufacturer: Lenovo
- CPU: Intel Lakefield
- GPU: UMA
- RAM: LPDDR4X
- SKU: 12660
- Unit: pcs
- Size: 2.02Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

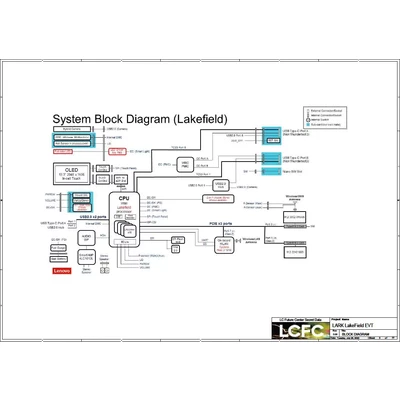

Schematic diagrams for Laptop Lenovo Thinkpad X1 Fold Gen 1
Project: NM-C501 Rev: 1.0
Schematic diagrams for motherboard marked GX3A1 NM-C501 Rev:1.0
Format: PDF
Total pages: 77

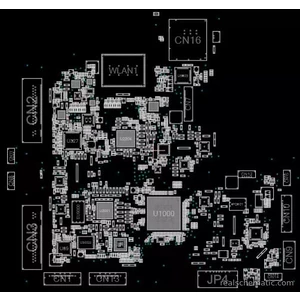

+ BoardView Rev: 1.0 ( with factory marking of electronic components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
