ASUS X1404VA X1404ZA F1504ZA X1504VA X1504ZA X1704ZA X1704VA

BoardView for Laptops ASUS VivoBook X1404VA / X1404ZA / F1504ZA / X1504VA / X1504ZA / X1704ZA / X1704VA

Project: ASUS X1404ZA   Rev: 2.0, 3.0

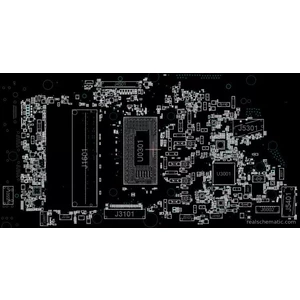

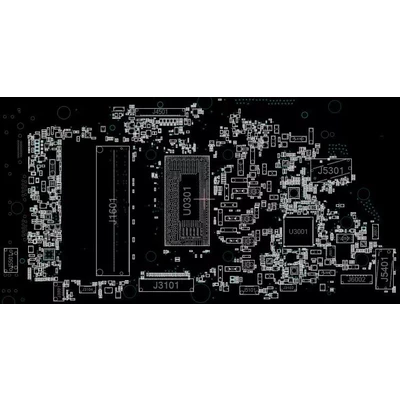

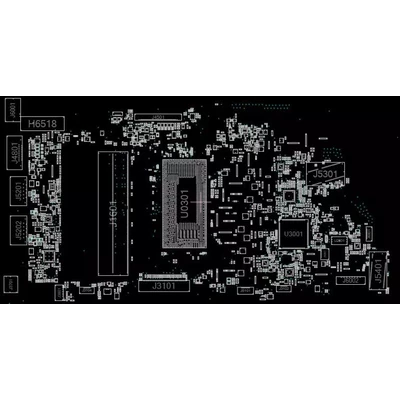

BoardView for motherboard marked X1404ZA MAIN BOARD R2.0, R3.0

Two sides. Two revisions.

Format: CAD full   ( shows the values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.

+ BoardView for X1404ZA IO Board   Rev: 2.0, 3.0

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
