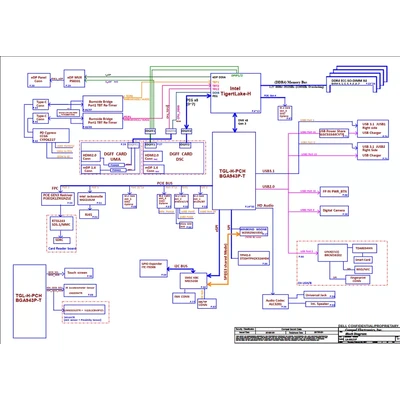

Schematic diagrams for Laptops Dell Precision 7560 series Project: Compal LA-K621P
- Manufacturer: Compal
- CPU: Intel Tiger Lake H
- VGA: External Module with Nvidia QN20 / UMA
- RAM: DDR4
- SKU: 05553
- Unit: pcs
- Size: 298.0Kb
- Availability: In stock
- Tags:
4.50eur

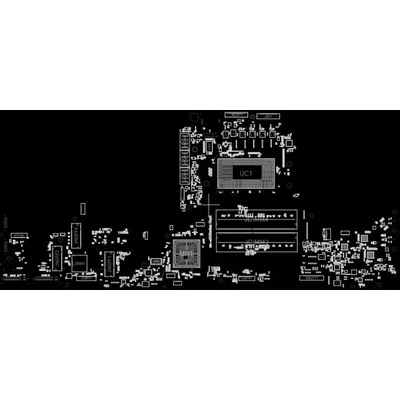

BoardView for Laptops Dell Precision 7560 series
Project: Compal LA-K621P Rev: 1.0
BoardView for motherboard marked GDB55 LA-K621P Rev:1.0(A00)
Two sides.
Format: CAD
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.

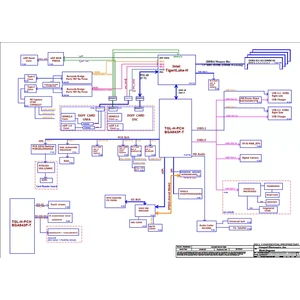

A schematic diagram in PDF format is available for quick order (see photo #2, price upon request).
