Schematic diagrams for Laptop Dell Precision 15 7520 PCB: CAP00 LA-E311P Rev:1.0(A00)
- Manufacturer: Compal
- CPU: Intel Skylake H / Kaby Lake H
- VGA: MXM Module
- RAM: DDR4
- SKU: 05555
- Unit: pcs
- Size: 2.08Mb
- Availability: In stock
- Tags:
5.25eur
4.25eur
Schematic diagrams for Laptop Dell Precision 15 7520
Project: Compal LA-E311P Rev: 1.0

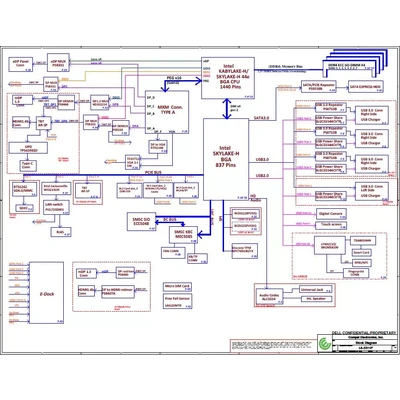

Schematic diagrams for motherboard marked CAP00 LA-E311P Rev:1.0(A00)
Format: PDF
Total pages: 71

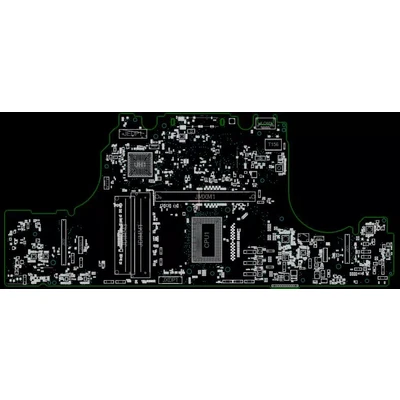

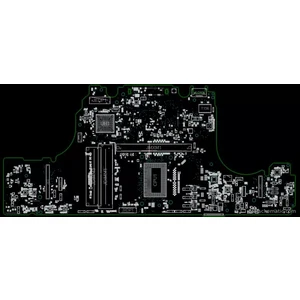

+ BoardView Rev: 1.0
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
