BoardView for Laptops ASUS VivoBook D1502L / D1502LA / M1402I / M1402IA / M1502I / M1502IA / M1503Q / M1503QA / M1603Q / M1603QA / M1703Q / M1702QA
- Manufacturer: ASUS
- CPU: AMD Cezanne H
- GPU: UMA
- RAM: DDR4
- SKU: 03739
- Unit: pcs
- Size: 153.1Kb
- Availability: In stock
- Tags:
7.00eur
6.25eur
BoardView for Laptops ASUS VivoBook D1502L / D1502LA / M1402I / M1402IA / M1502I / M1502IA / M1503Q / M1503QA / M1603Q / M1603QA / M1703Q / M1702QA
Project: Inventec ASUS M1403QA Rev: 2.0

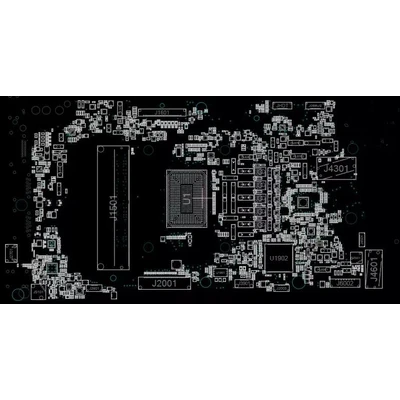

BoardView for motherboard marked M1403QA MAIN BOARD R2.0
Two sides.
Format: CAD full ( shows the values / labeling of the components )
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
+ BoardView for Sub-boards
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
