BoardView for Laptops MSI Prestige 15 A11SB / A11SCS / A11SCX / MS-16S6 PCB: MS-16S61 VER:1.1
- Manufacturer: MSI
- CPU: Intel Tiger Lake
- GPU: Nvidia N18P / N18S
- RAM: DDR4
- SKU: 02684
- Unit: pcs
- Size: 150.0Kb
- Availability: In stock
- Tags:
5.25eur
4.25eur

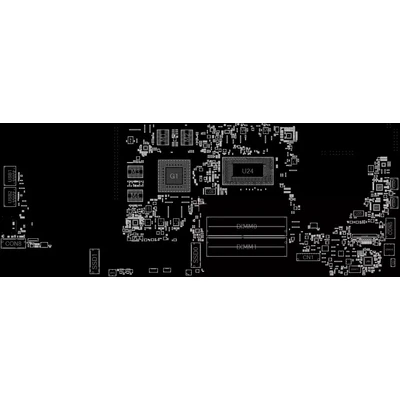

BoardView for Laptops MSI Prestige 15 A11SB / A11SCS / A11SCX / MS-16S6 series
Project: MSI MS-16S61 Rev: 1.1
BoardView for motherboard marked MS-16S61 VER:1.1
Two sides
Shows electrical circuits between components and the names of these circuits ( Net names )
Format: CAD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
