ASRock Phantom Gaming X Radeon RX570 8G OC
SKU: 18000
BoardView for Graphics Card ASRock Phantom Gaming X Radeon RX570 8G OC
- Manufacturer: ASRock
- GPU: AMD Polaris 20
- RAM: GDDR5
- SKU: 18000
- Unit: pcs
- Size: 323.9Kb
- Availability: In stock
- Tags:
5.25eur

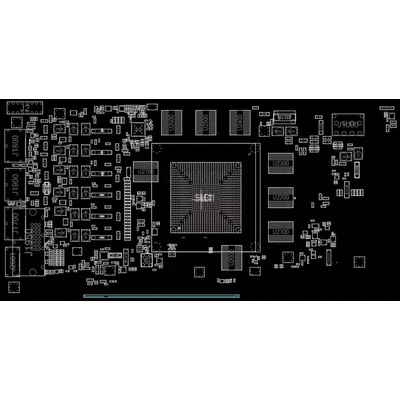

BoardView for Graphics Card ASRock Phantom Gaming X Radeon RX570 8G OC
Project: ASRock AG1801 Rev: 1.01
BoardView for cards marked PHANTOM GXR RX570 8G OC
Two sides.
Format: FZ ( shows the values / labeling of the components )
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
