ASUS Dual GeForce RTX 4070 OC Edition 12GB
SKU: 18002
Schematics and BoardView for Graphics Card ASUS Dual GeForce RTX 4070 OC Edition 12GB
- Manufacturer: ASUS
- GPU: Nvidia AD104
- RAM: GDDR6X
- SKU: 18002
- Unit: pcs
- Size: 1.80Mb
- Availability: In stock
- Tags:
7.00eur
Schematic diagrams for Graphics Card ASUS Dual GeForce RTX 4070 OC Edition 12GB
Project: ASUS CG1413PBI Rev: 1.0
Schematic for cards with markings on the backplate DUAL-RTX4070-O12G
Format: PDF
Total pages: 52
+ BoardView Rev: 1.01
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.
+ Short Repair Guide

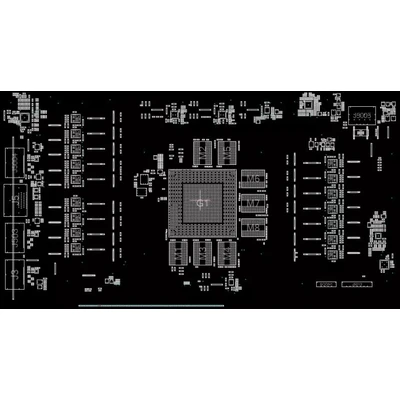

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
