Lenovo IdeaPad Y470 Y570
SKU: 12062
Schematic diagrams for Laptops Lenovo IdeaPad Y470 / Y570 Project: LA-6881P
- Manufacturer: Compal
- SKU: 12062
- Unit: pcs
- Size: 1.75Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Lenovo IdeaPad Y470 / Lenovo IdeaPad Y570
Project: Compal LA-6881P Rev: 1.0

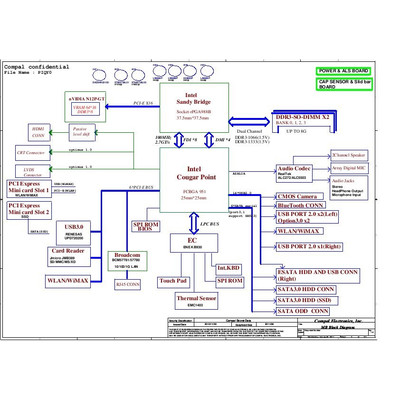

Schematic diagrams for PCB marked PIQY0 LA-6881P
Format: PDF
Total pages: 63

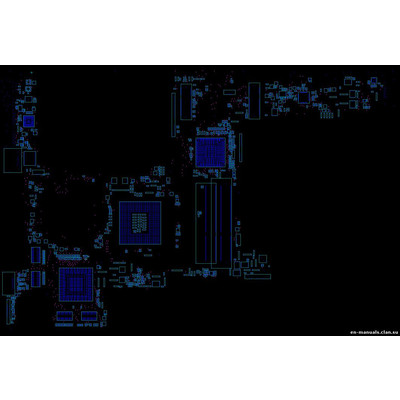

+ BoardView Rev: 1.0
The program for viewing is attached.
