Lenovo IdeaPad Slim 5 14IAH8 14IRL8 16IAH8 16lRL8
SKU: 12687
Schematics and BoardView for Laptops Lenovo IdeaPad Slim 5 14IAH8 / 14IRL8 / 16IAH8 / 16lRL8
- Manufacturer: Compal
- CPU: Intel Alder Lake / Raptor Lake
- GPU: UMA
- RAM: LPDDR5
- SKU: 12687
- Unit: pcs
- Size: 1.98Mb
- Availability: In stock
- Tags:
6.00eur
5.25eur

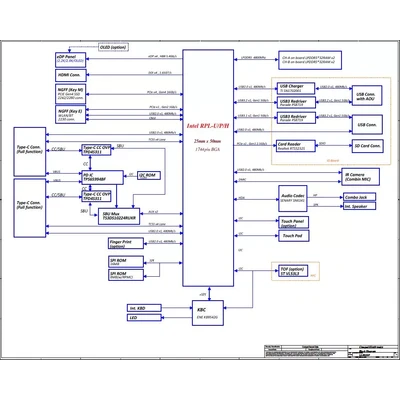

Schematic diagrams for Laptops Lenovo IdeaPad Slim 5 14IAH8 / 14IRL8 / 16IAH8 / 16lRL8
Project: Compal LA-M652P Rev: 1A
Schematic diagrams for motherboards marked HLS4I LA-M652P Rev:1A
Format: PDF
Total pages: 121

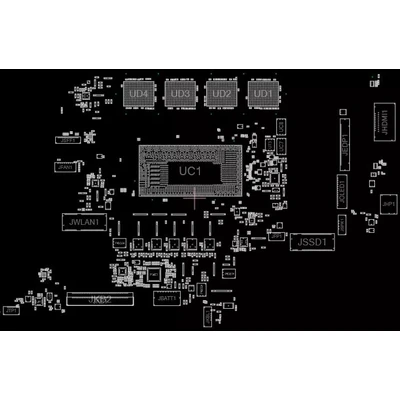

+ BoardView Rev: 1A
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
