Lenovo IdeaPad Slim 3 15IRH10 16IRH10 PCB: NM-G531
SKU: 12690
Schematics and BoardView for Laptops Lenovo IdeaPad Slim 3 15IRH10 / 16IRH10
- Manufacturer: Lenovo
- CPU: Intel Raptor Lake H
- GPU: UMA
- RAM: DDR5
- SKU: 12690
- Unit: pcs
- Size: 2.49Mb
- Availability: In stock
- Tags:
6.00eur
5.25eur
Schematic diagrams for Laptops Lenovo IdeaPad Slim 3 15IRH10 / IdeaPad Slim 3 16IRH10
Project: Lenovo NM-G531
Schematic diagrams for motherboards marked NM-G531 Rev:1.0
Format: PDF
Total pages: 100

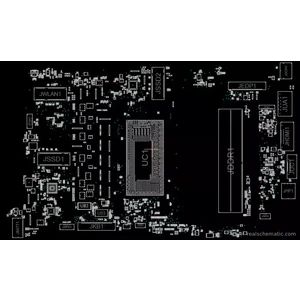

+ BoardView Rev: 1.0
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.

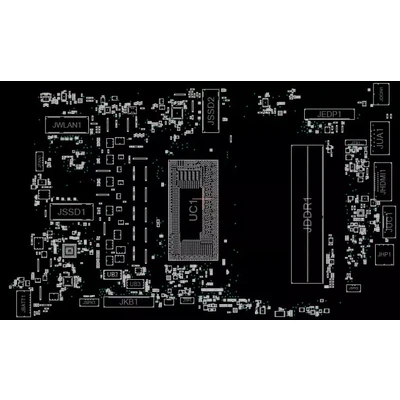

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
