ASUS ROG Flow Z13 GZ302EA series
SKU: 03770
BoardView for Laptops ASUS ROG Flow Z13 GZ302EA series
- Manufacturer: ASUS
- CPU: AMD Strix Halo (FP11)
- GPU: UMA
- RAM: LPDDR5X
- SKU: 03770
- Unit: pcs
- Size: 233.8Kb
- Availability: In stock
- Tags:
7.00eur
6.25eur

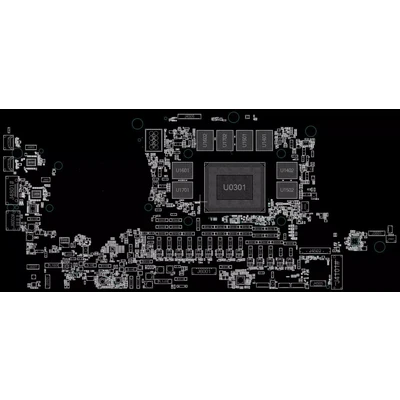

BoardView for Laptops ASUS ROG Flow Z13 GZ302EA series
Project: ASUS GZ302EA Rev: 2.0
BoardView for motherboard marked GZ302EA MAIN BOARD R2.0
Two sides.
Format: FZ ( shows the values / labeling of the components )
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
+ BoardView for all sub-boards
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
