Samsung NP-R525 NP-R530 NP-R580 NP-R730 NP-R780
SKU: 07016
Schematic diagrams for Laptops Samsung NP-R525, NP-R530, NP-R580, NP-R730, NP-R780
- Manufacturer: Samsung
- CPU: Intel Arrandale / Clarksfield
- GPU: Nvidia N11P
- RAM: DDR3
- SKU: 07016
- Unit: pcs
- Size: 1.17Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Samsung NP-R525 / Samsung NP-R530 / Samsung NP-R580 / Samsung NP-R730 / Samsung NP-R780
Project: Samsung ' BREMEN-M '
Schematic diagrams for PCB with markings BA41-01174A, BA41-01175A, BA41-01176A
Format: PDF
Total pages: 56

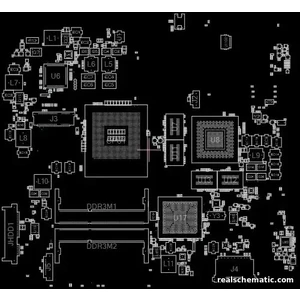

+ BoardView ( shows the values / labeling of the components )
Format: CAD full
The program for viewing is attached.
