Packard Bell EasyNote TR85 TR86 TR87 Gateway ID58
SKU: 15018
Schematic diagrams for Laptops Packard Bell EasyNote TR85, TR86, TR87 / Gateway ID58
- Manufacturer: Wistron
- CPU: Intel Penryn
- GPU: Nvidia N10M / UMA
- RAM: DDR3
- SKU: 15018
- Unit: pcs
- Size: 1.55Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

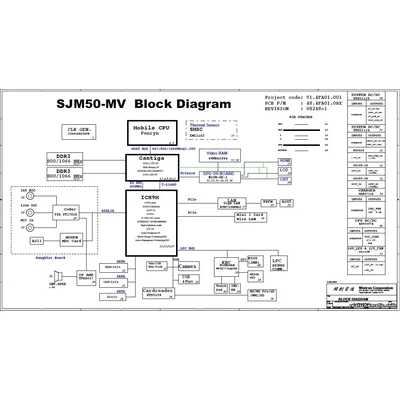

Schematic diagrams for Laptops Packard Bell EasyNote TR85 / TR86 / TR87 & Gateway ID58
Project: Wistron SJM50-MV
Schematic diagrams for motherboard marked 08248-1M SJM50-MV MB
Format: PDF
+ Sub-boards schematic diagrams
Total pages: 65
+ BoardView Rev: 1M
Format: BRD
The program for viewing is attached.

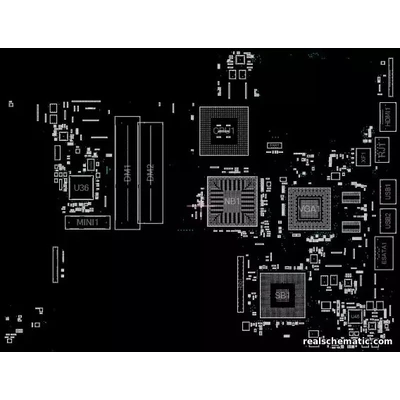

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
