ASUS A53T, K53T, K53TA, K53Z, X53T, X53TA
|
|

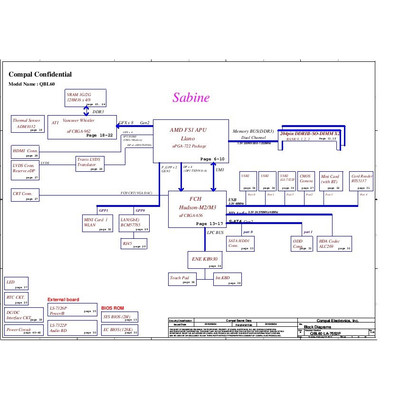

Schematic diagrams for Laptops ASUS A53T / K53T / K53TA / K53Z / X53T / X53TA
Project: Compal LA-7552P
Schematic diagrams for PCB marked QBL60 LA-7552P
Format: PDF
Total pages: 49

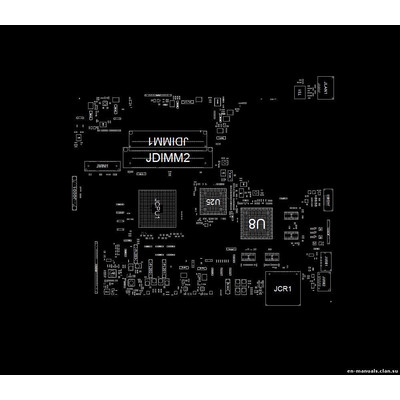

+ BoardView Rev: 1.0
The program for viewing is attached.
+ Short Repair Guide
