ASUS K40ID / ASUS K50ID
SKU: 03187
ASUS K40ID / ASUS K50ID BoardView + Repair Guide
- Manufacturer: ASUS
- SKU: 03187
- Unit: pcs
- Size: 1.84Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
BoardView
Project: ASUS K40ID Rev: 2.0, 3.0, 3.2

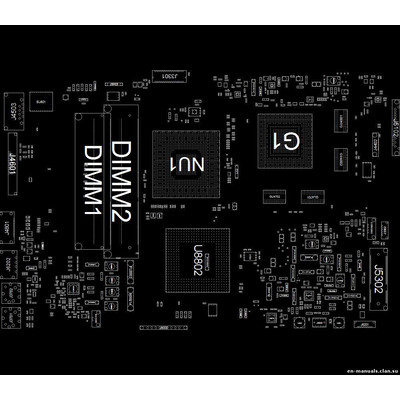

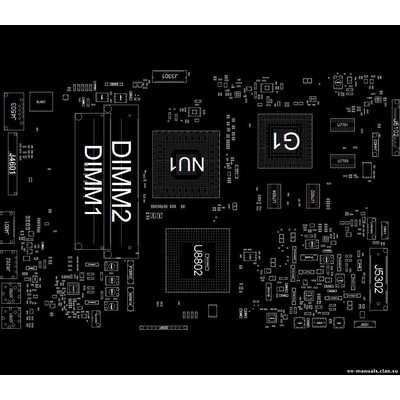

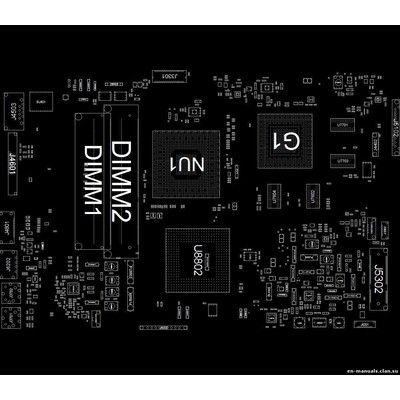

BoardView for PCB marked K40ID MAIN BOARD
Two sides. Three revisions.
Shows the positional designation, labeling and other details.
The program for viewing is attached.
+ Short Repair Guide
