Fujitsu LifeBook AH531 PCB: FH5
SKU: 14065
Schematic diagrams for Laptop Fujitsu LifeBook AH531 Project: Quanta FH5
- Manufacturer: Quanta
- CPU: Intel Socket 989
- GPU: Nvidia N12P / UMA
- RAM: DDR3
- SKU: 14065
- Unit: pcs
- Size: 1.05Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

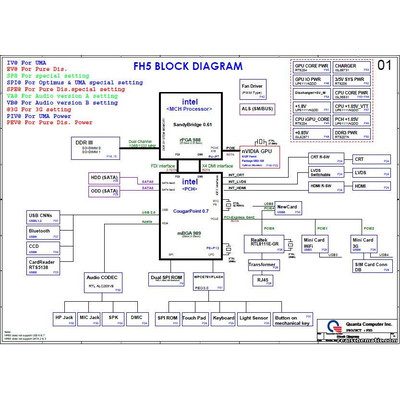

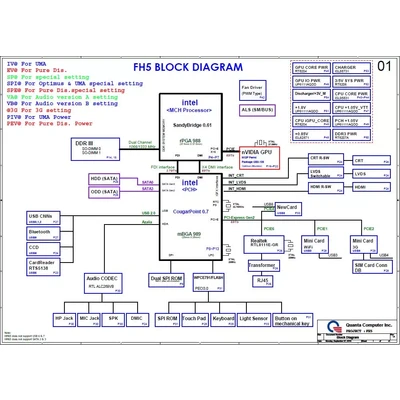

Schematic diagrams for Laptop Fujitsu LifeBook AH531
Project: Quanta FH5
Schematic diagrams for motherboards marked FH5 DA0FH5MB6F0 REV:F or DA0FH5MB6E1 REV:E
Format: PDF
Total pages: 42

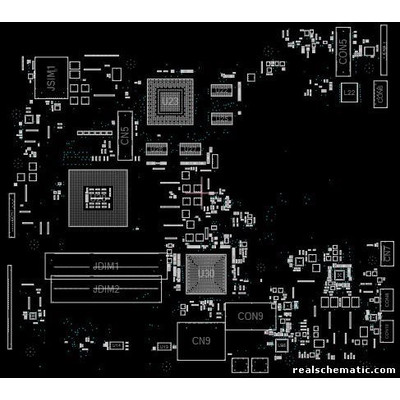

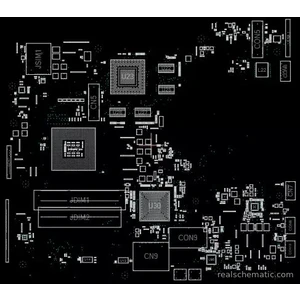

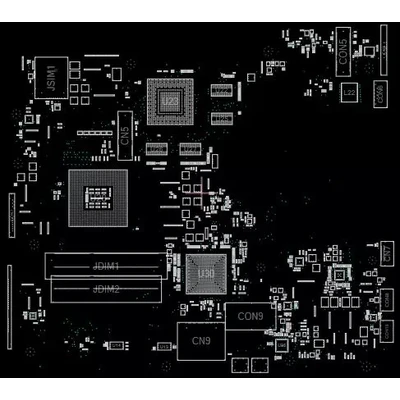

+ BoardView Rev: E
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
