ASUS K52DR / ASUS X52DR

BoardView

Project: ASUS K52DR   Rev: 2.0, 2.2, 3.1

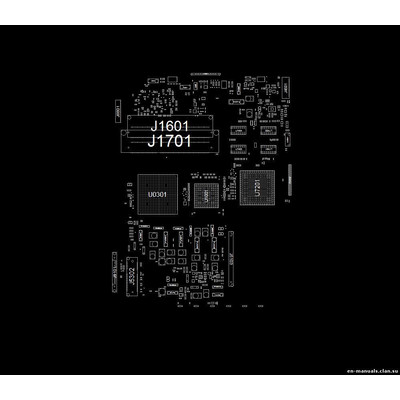

BoardView for PCB marked K52DR MAIN BOARD

Two sides. Three revisions.

Shows the positional designation, labeling and other details.

The program for viewing is attached.

+ Short Repair Guide
