Dell Latitude D630 (UMA)
SKU: 05010
Schematic diagrams for Laptop Dell Latitude D630 Project: Compal LA-3301P
- Manufacturer: Compal
- CPU: Intel Merom
- GPU: UMA
- RAM: DDR2
- SKU: 05010
- Unit: pcs
- Size: 1.04Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

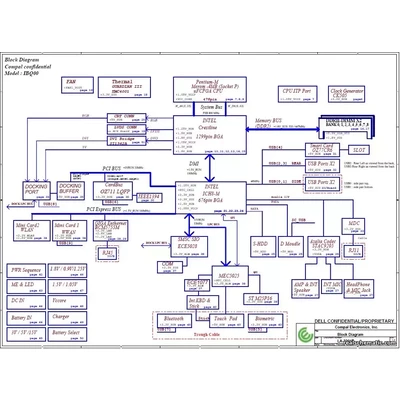

Schematic diagrams for Laptop Dell Latitude D630 (UMA)
Project: Compal LA-3301P Rev: 1.0
Schematic diagrams for PCB marked IBQ00 LA-3301P Rev:1.0)A00)
Format: PDF
Total pages: 59

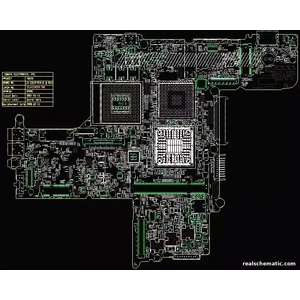

Multi-layer BoardView and program for viewing it are available (on request, included in the price).
