Dell XPS M1330

Rating: 5.0/1
 4.50eur
  • Manufacturer: Wistron
  • CPU: Intel Merom
  • VGA: Nvidia NB8M
  • RAM: DDR2
  • SKU: 05019
  • Unit: pcs
  • Size: 1.31Mb
  • Availability: In Stock
    • Tags: Dell, wistron, DT2, M1330, XPS
Compare

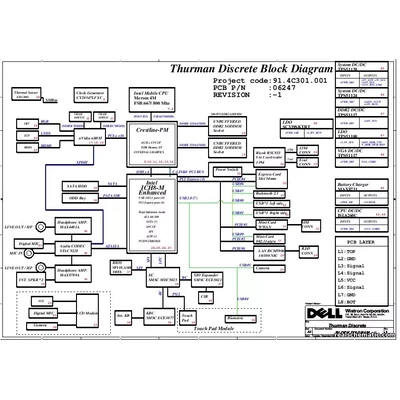

Schematic diagrams for Laptop Dell XPS M1330

Project: Wistron ' DT2 Discrete '

Schematic diagrams for PCB marked DT2 Discrete 06247

Format: PDF

+ Sub-boards schematic diagrams

Total pages: 54

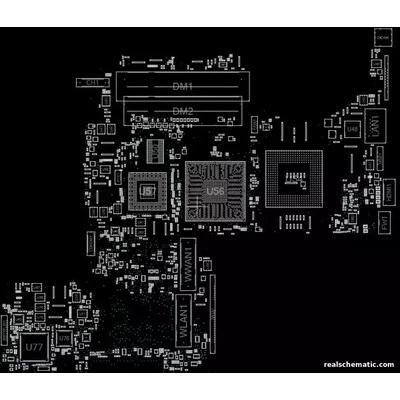

+ BoardView   Rev: 06247-4

The program for viewing is attached.

Added by: , Monday, 14.06.2010
