Acer Aspire 5530 /5530G / 5230 series
SKU: 00131

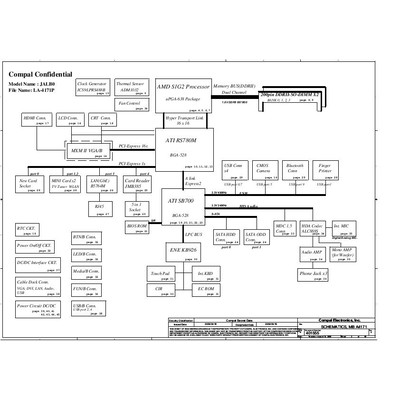

Schematic diagram for Laptops Acer Aspire 5530 / 5530G / 5230 series Project: Compal LA-4171P ' JALB0 ' (Rev 2.0)
- Manufacturer: Compal
- SKU: 00131
- Unit: pcs
- Size: 1.02Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagram for Laptops Acer Aspire 5530 / 5530G / 5230 series
Project: Compal LA-4171P ' JALB0 ' (Rev 2.0)
50 pages
+Sub-boards schematic diagram : LS-4171P, LS-4172P, LS-4173P, LS-4174P, LS-4175P, LS-4176P
